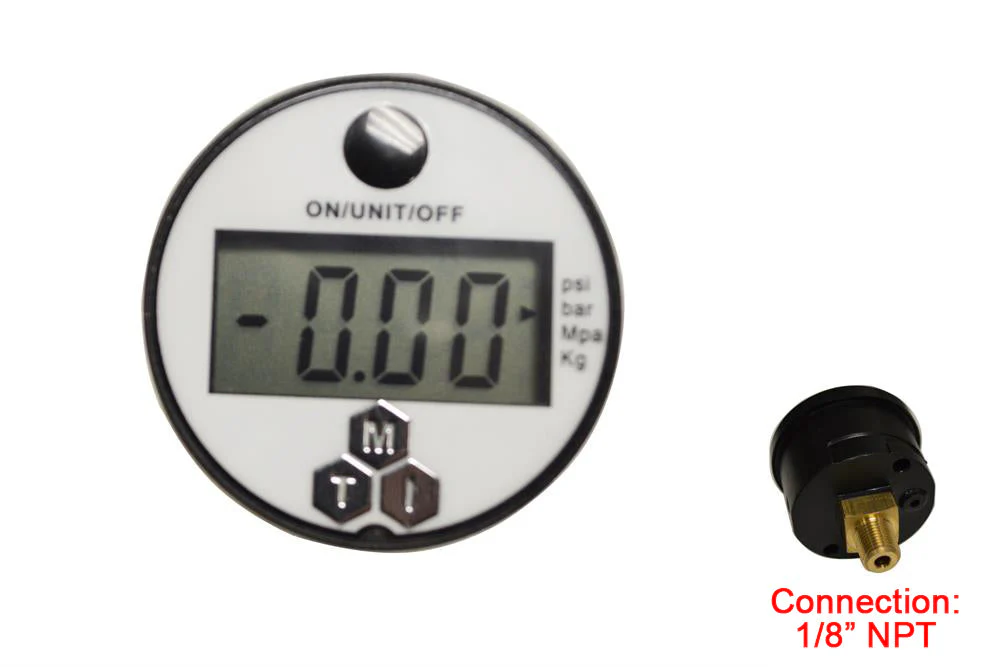

Digital Pressure Gauge ( 1-3/4" Dia), 0 to 145 psi, with 1/8" NPT(M) Connections - EQ-DVPG-EW

    Designed for use in numerous applications and industries, these digital gauges can be used for air pressure measurement in marine and diving, filtration, compressor and pneumatic regulators measurement, laboratory vacuum and pressure measurement, as well as aviation and defense, and general OEM use where air or compatible gases are used and brass can be used.
 These high-accuracy, low-cost digital gauges have a four-digit, 1/2"H LCD and read in psi, bar, mPa, and kg/cm2. Gauges have a 1 3/4" (44.5 mm) dial and come in three styles—0 to 145 psi in 1/8" or 1/4" NPT(M) connection, and vacuum to 100 psi in 1/8" NPT(M) connection.

Specification

Product Type		Digital Pressure Gauges
Power		3 V lithium battery ( CR2450 )  one included Click to learn How to Chang battery for Digital Pressure Gauge
Temperature range (º F)		30 to 165
Temperature range (º C)		0 to 55
Media compatibility		Air or compatible gases
Wetted materials		Brass
Unit of Measurement		psi, Bar, Mpa, kg/cm2
Resolution		0.1 psi
Range		0 to 145 psig
Process connection		1/8" NPT(M)
Battery life		1 Yr estimated
Power		3 V lithium battery
Accuracy		1% full-scale
Dial size (" Dia)		1 3/4" OD  x 1.06" Thick
Case		ABS plastic
Lens material		PC
Display		4-digit LCD, 1/2"H
