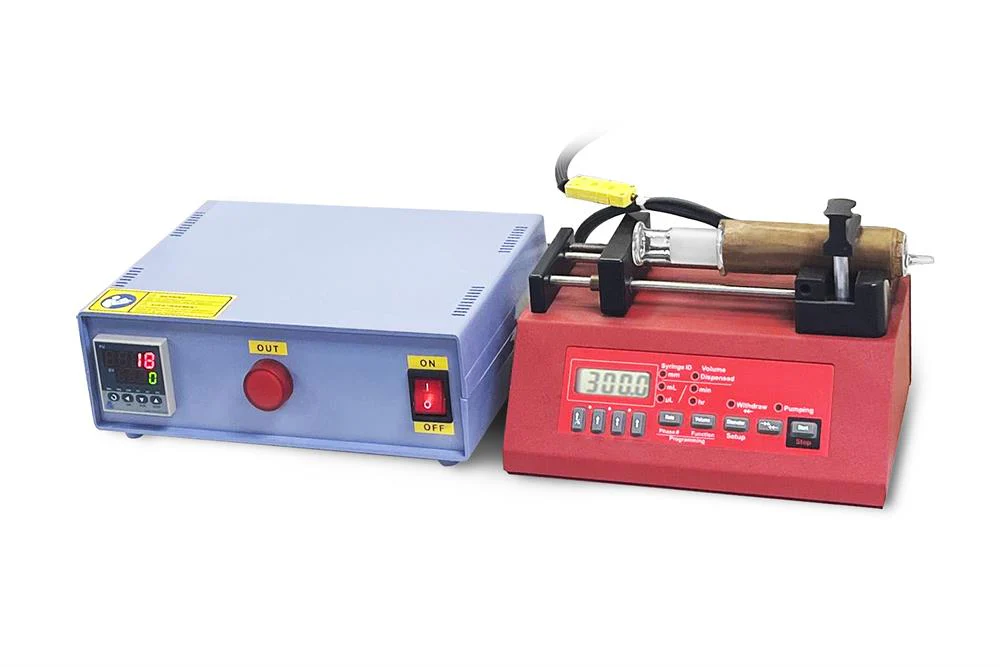

Digital Controlled Syringe Pump with Heatable Glass Syringe -0 - 25ml/min upto 100oC) - EQ-300SP-H-LD
HomeStore

Digital Controlled Syringe Pump with Heatable Glass Syringe -0 - 25ml/min upto 100oC) - EQ-300SP-H-LD

Digital Controlled Syringe Pump with Heatable Glass Syringe -0 - 25ml/min upto 100oC) - EQ-300SP-H-LD

SPECIFICATIONS:

Digital Controlled Infusion Syringe Pump



Features
  • Easy to use keypad interface
  • Holds small or big syringes up to 60 mL
  • Pumps continuously until you stop the pump
  • The infusion rate can be changed while pumping
  • Remembers previous settings on power-up
  • Power failure mode allows the pump to continue pumping after a reset
  • Syringe purge mode
  • Displays total volume dispensed in mL or µL units
  • The maximum pumping rate of  25 mL/min with a 60 mL syringe
  • Precise reproducible flow rates
  • Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
  • Infuses Only   Does not withdraw, volume target, or have computer interface
  • Infusion Syringe Pump with optional Heatable Glass Syringe is available at extra cost
                        Input Power  100 -240VAC, 0.75Amps
                        Dimension
                        100°C 20ml Heatable Glass Syringe with Temperature Control Unit

                        Max. Power

                        		 23 W
                        Max. Temperature
                        		 100°C  ( Higher temperature up to 250°C is available upon request )
                        Thermo Couple  K type
                        Temperature Controller
                        • The controller uses PID via SSR power control
                        • Single point setting controller
                        • Over-temperature protection and alarm allow for operation without attendant(s).
                        • +/- 1 ºC temperature accuracy.
                        Dimensions 260 x 230 x 120 mm (L x D x H)
                        Syringe
                        		 20ml Glass syringe
                        OD: 24mm
                        ID: 20mm
                        Total Length with a booster: 145mm
                        Operation instructions
                        Compliance CE certified
                        NRTL and CSA certification is available upon request at the extra cost
                        Application Notes
                        • Pre-metered Horizontal-Dipping Process

                        • Such a syringe pump can precisely control the volume of the solution per unit coating area been fed into the gap between the cylindrical barrier and the glass substrate.
                        • Doctor-Blade (or Wire-Bar) Coating:  Such Syringe Pump can be used for adding a solvent at various concentrations. By using multiple syringe pumps, you can add an ingredient in a certain weight ratio to a mixed solution. Similar to the Horizontal-dipping Process, the blended organic solution is introduced into the space between the barrier and the substrate by such pumps' capillary action. The Doctor-Blade is transported horizontally at a given constant velocity, a thin solution layer is then spread and formed evenly on the substrate.
                        • Dip Coating:   Wet solution coating such as dip coating has been the most popular method for solution-processed devices.
                        • DIY an Ultrasonic Spray and Electrospinning device
