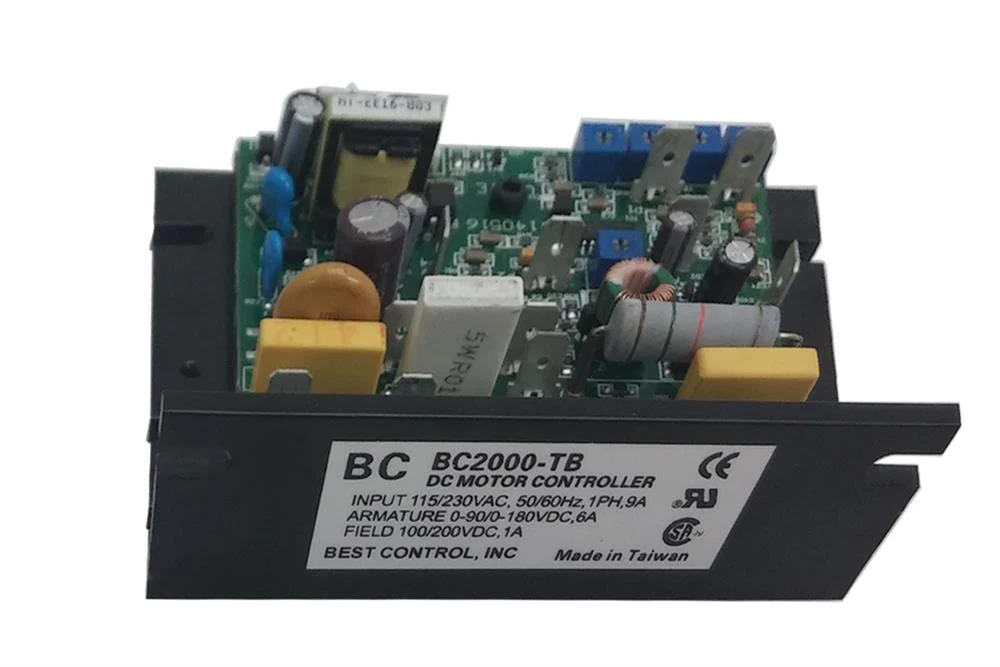

DC Motor Controller for MTI Product AFAIII,AFAI,STX202 ,MTI-PCB-MC
HomeStore

DC Motor Controller for MTI Product AFAIII,AFAI,STX202 ,MTI-PCB-MC

DC Motor Controller for MTI Product AFAIII,AFAI,STX202 ,MTI-PCB-MC

  • Manufacture part# BC2000
  • Input: 115/230 VAC , 50/60Hz can be used worldwide AC power.
  • Armature Voltage
  • 0-90VDC (115VAC input)
  • 0-180VDC (230VAC input)
  • Max current: 6.0A
  • Perfect use to control MT-5400 90Vdc 36W motor
  • Motor's Red wire to "A+" on board
  • Motor's Black wire to "A-" on board
  • Variable resistor (POT) is included to vary 90V DC motor speed from 0 - 2000 RPM
  • One AC input cable is included
  • For detail specifications and operation manual on the speed controller, please see original datasheet
  • It is suitable for 90VDC motor up to 350W
  • Operating Temperature: -10'C (14F) Min, 60'C (140F) Max
  • Elevation: No impact
  • Humidity: 75%
  • Dimension (LxWxH) : 112mm(4.4") x 98mm(3.9") x 40mm(1.6")
  • Weight: 13.4Oz (380 grams)
SYJ-150                                                  MTI-PCB-MC
Troubleshooting Problem Possible Causes Corrective Action
No Output,INPUT: 220V AC
Output:0-90V DC

 		There is Precise Linear Potentiometer Please check the output power while turning the Potentiometer. The range of A+ AND A- output power should be 0-90V DC Change
SYJ-160 MTI-PCB-MC
HRP-01 MTI-PCB-MC
AFA-III MTI-PCB-MC
AFA-II MTI-PCB-MC
STX-201 MTI-PCB-MC
MTI-PCB-MC
