Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net

This Copper Mesh Foil (11um) is used as a substrate for coating anode materials in Li-Ion battery research.

Specifications

Material:
Cu+Ag≥99.8%, Zn≤0.06%, Ni≤0.01%, Cr≤0.02%
Sold in roll only
Shipped in the vacuum bag
- Length: 80 meters
- Width of Foil Width: 290mm
- Width of Porous Area: 260mm
- Thickness: 11 um
- Pore Size:0.25mm
- Distance between Pore: 0.8mm
- Net weight: 2 kg/roll
- Please click to view SDS

Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC

$998.00

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net—

$998.00

More Images

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net - Image 2

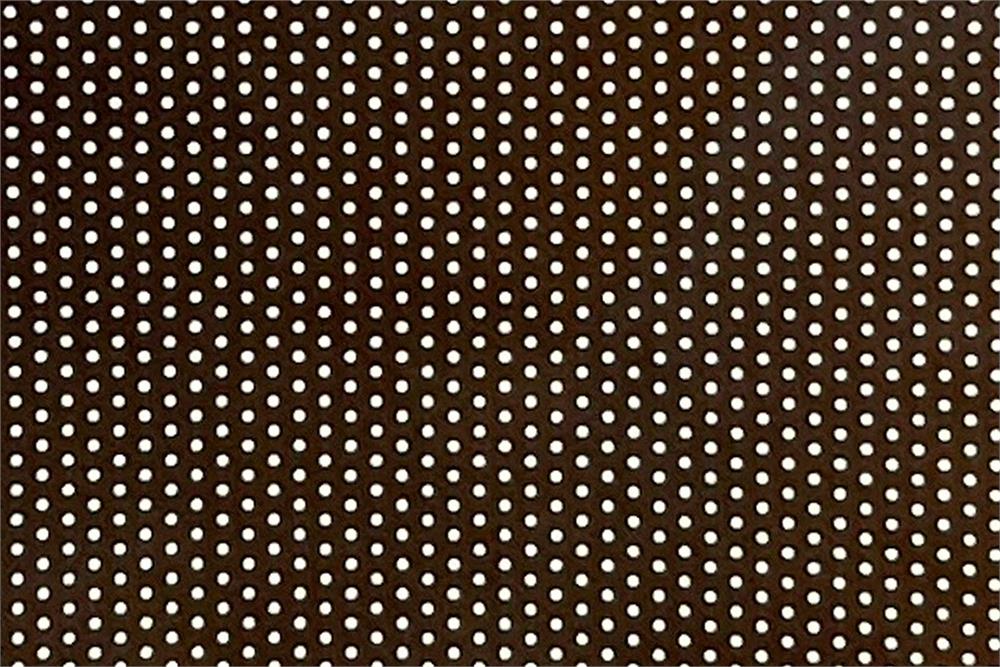

Copper Mesh Foil Roll for Battery Anode Substrate (290mm W x 11um T x 80 m L) - MF-Cu11D25-net - Image 3
