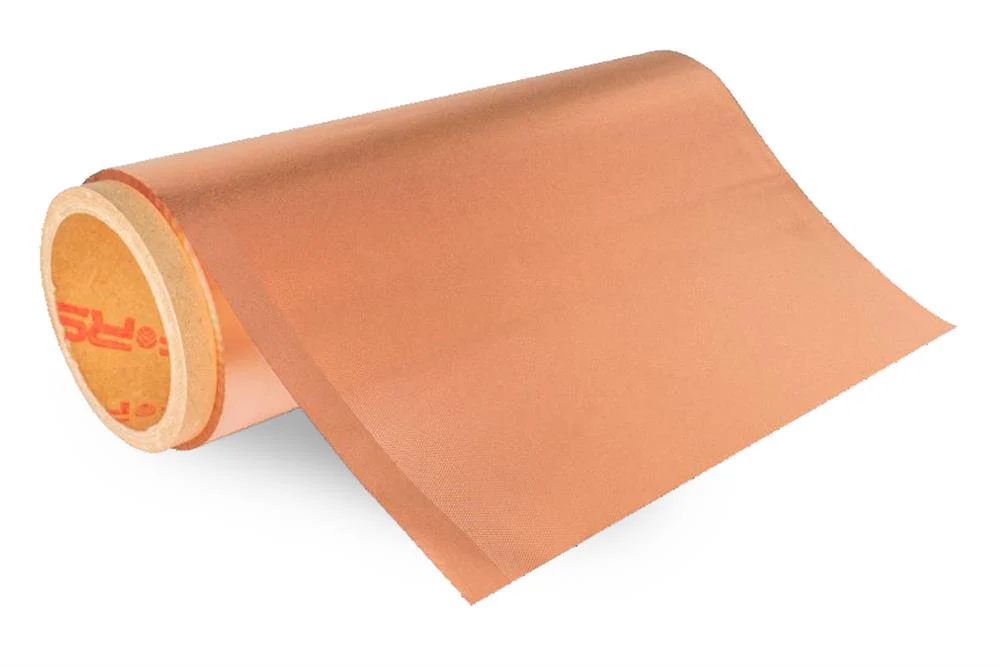

Copper Mesh Foil Roll for Battery Anode Substrate (240mm W x 45um T x 20m L) - MF-Cu45-net

This copper net foil (45 um) is used as a substrate for coating anode materials in Li-Ion battery research.

Specifications

Material: Copper, Purity> 99.99%
Sold in roll only
Shipped in the vacuum bag
- Length: 20 meter
- Width: 240mm
- Thickness: 45 um
- Density: 8.94 g·cm⁻³
- Surface Density: 180±15g/m²

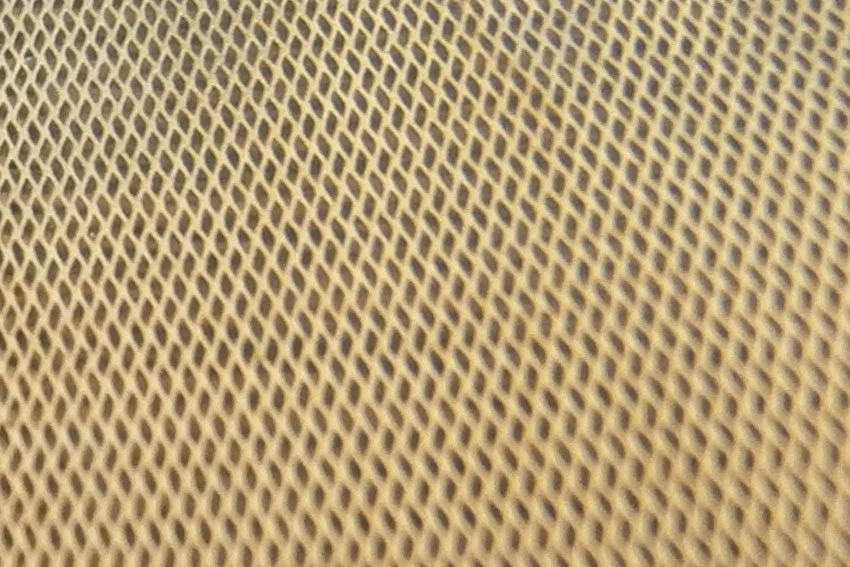

- Pore Size: 0.4*1.5mm
- Open area: ~55%
- Net weight: 1.5 kg per roll

Click the video below to see the battery anode coated
by MTI's Film coater MSK-AFA-II-VC
