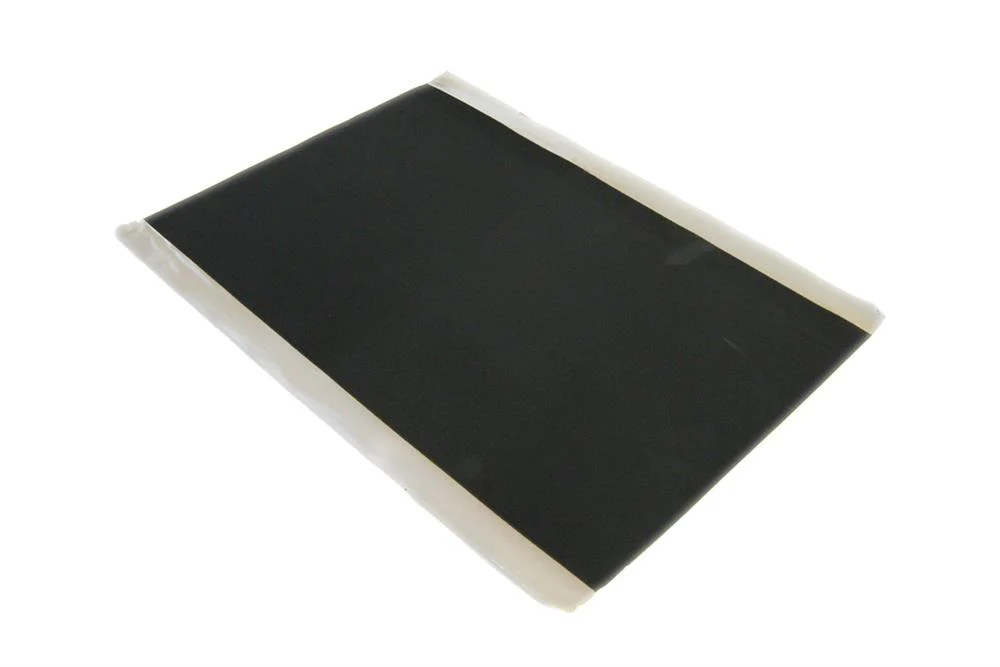

Li-Ion Battery Cathode - Aluminum Foil Single Side Coated by LiNiCoMnO2 (Ni:Co:Mn=1:1:1, NCM111 ) (241mm L x 200mm W x 0.06mm T) 5 sheets/bag - bcaf-241NCM-SS111

This electrode sheet is based on Aluminum foil coated by Lithium Nickel Manganese Cobalt Oxide (NCM111) on a single side and is used as
the cathode of Li-Ion battery -- 5 sheets /bag

SPECIFICATIONS

• Material:  LiNiCoMnO2 （1:1:1)
• Current collector (substrate): Aluminum foil (15 microns)
• Cathode material: Lithium Nickel Manganese Cobalt Oxide
• Coated Area: 241mm L x 200mm W. The edge width of blank area is 12.5 mm for each side.
• Single sides material density: 13 ± 0.2 mg/cm2
• Compaction Density: 3.0 ± 0.1 g/cm3
• Active Material Proportion in Powder: 95.5% (PVDF and Super P is 2% and 2.5%, respectively)

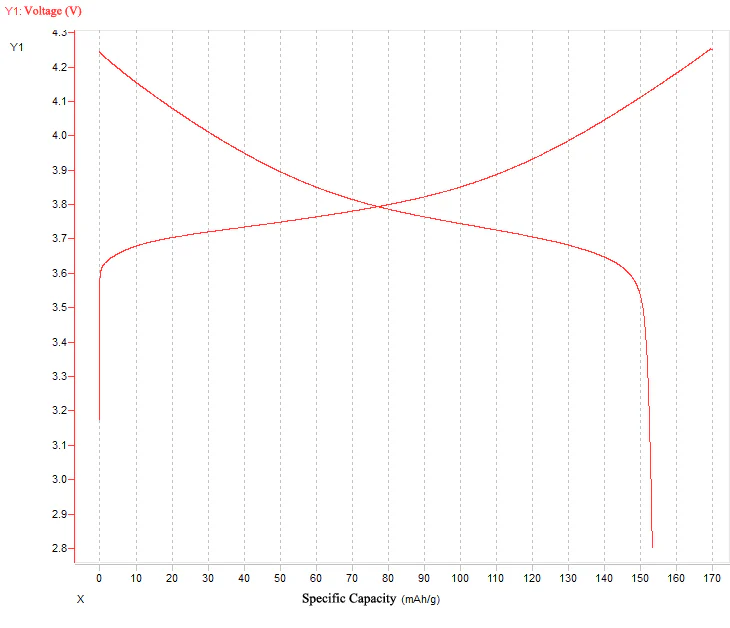

• Specific Capacity: 150 mAh/g [0.1C, 4.25-2.8 V vs Li/Li+, Half Cell] [Electrolyte:1.0M LiPF6 in EC:DMC:EMC=1:1:1 Vol% with 1.0%VC]

• Note:  The electrode sheet shall be stored in a vacuum box, a vacuum oven or a glove box to avoid degradation


 for NCM

 for Aluminum
