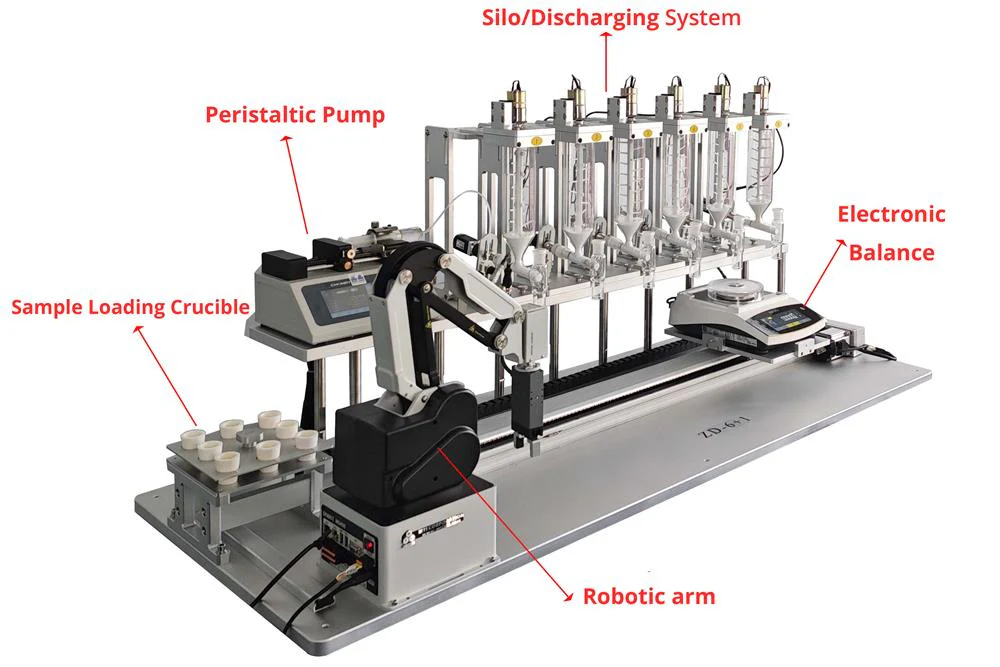

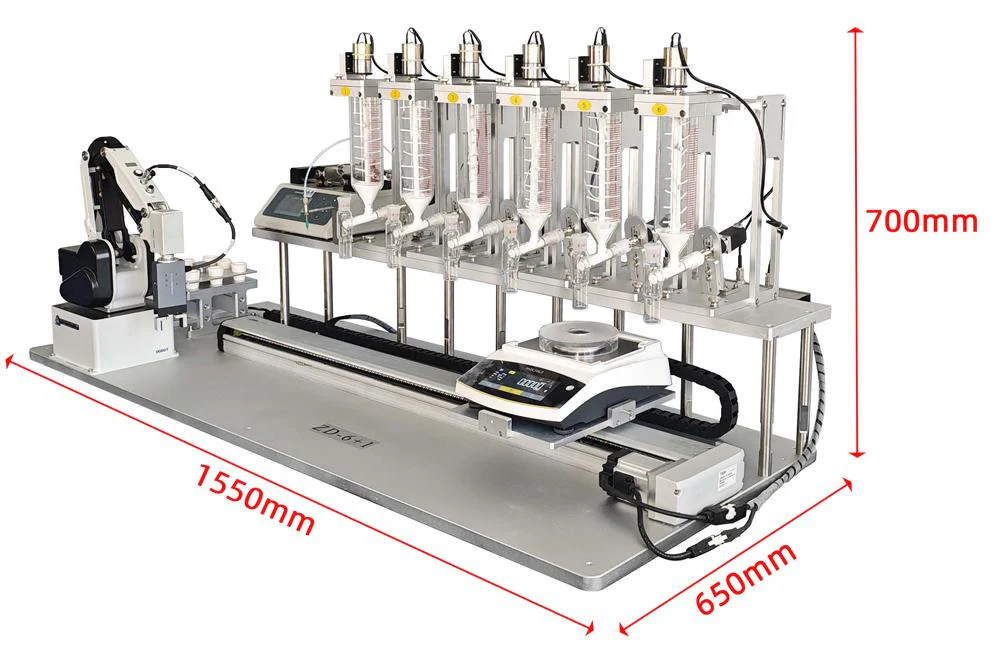

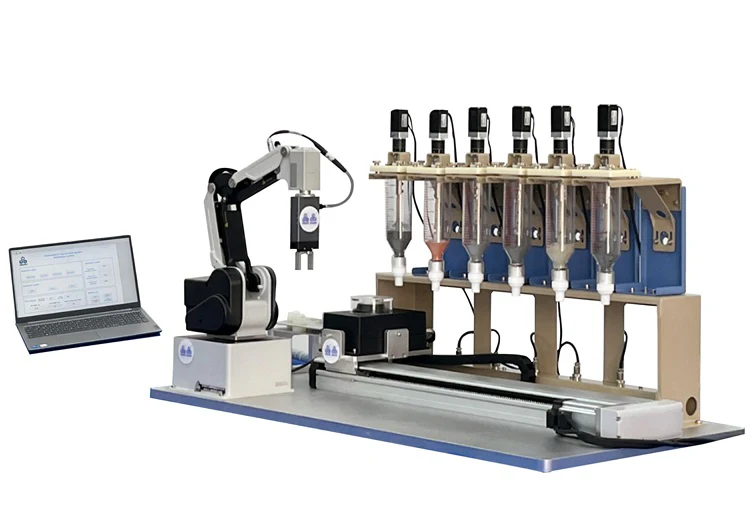

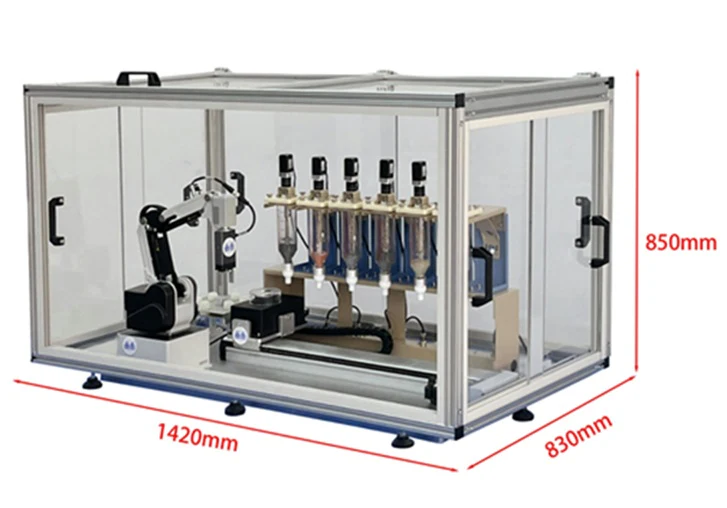

Automatic 6-channel Powder Dispensing System - AM-PD6

AM-PD6 is an automated powder dispensing system for high-throughput and autonomous experiments in the condensed phase. This compact, glovebox-friendly unit is programmable via an LCD touchscreen and compatible with various types of powder in a fast and accurate manner up to 100 g ± 1 mg. The modular design can be used solely for 6 samples per batch or paired with an automated MTI materials preparation system for autonomous experiments. The free software advances instrumental communication, data acquisition, and logging into a database by a laptop computer

SPECIFICATIONS

Power	120 VAC or 208~240VAC, 50/60Hz 3 kVA

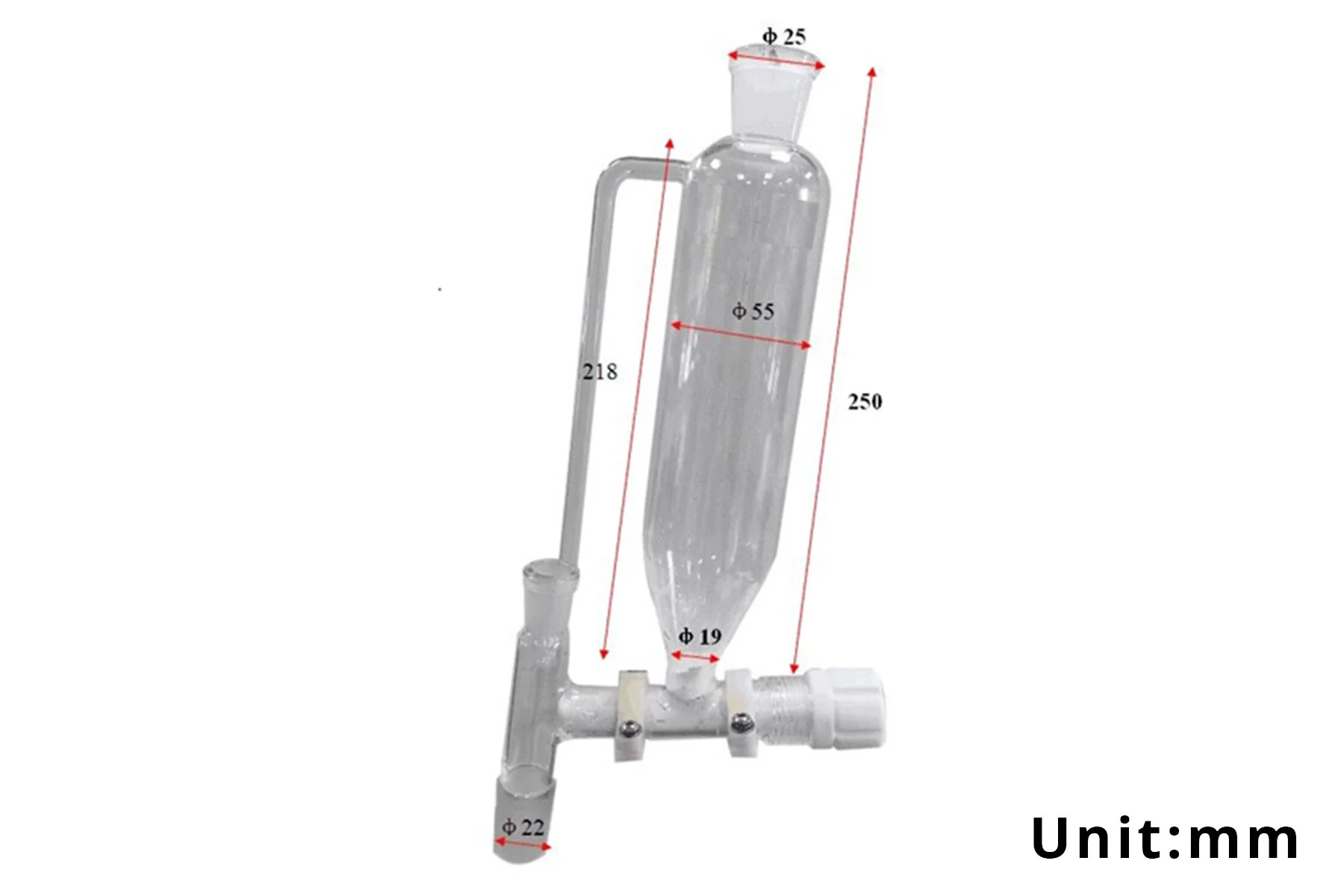

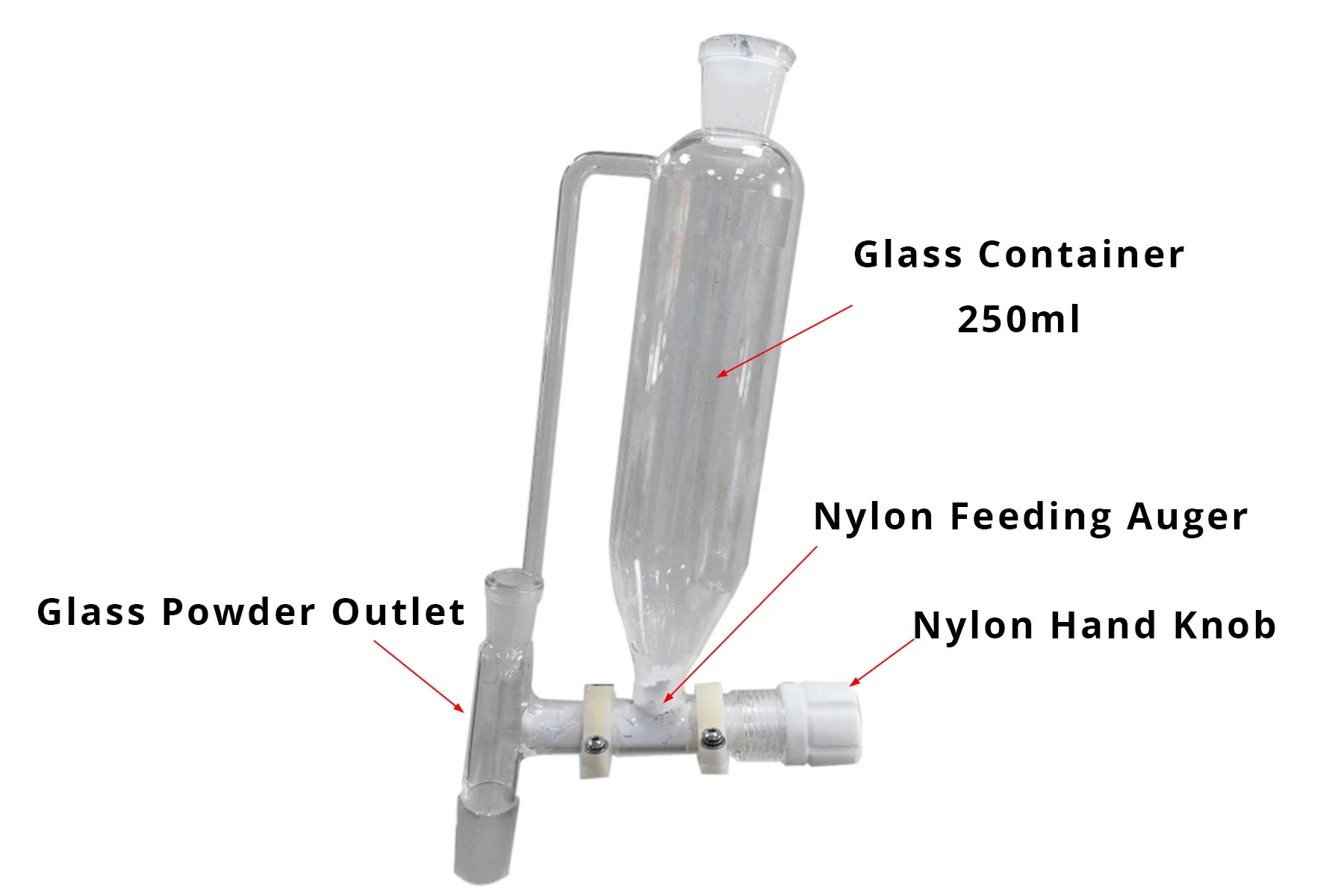

Material Feeding System	Six (6) 500 ml raw material containers with mechanical stirring Six (6) glass material feeders
Feeding Capacity	up to 100g
Particle size	10 - 100 microns (standard)  For particle sizes less than 10 microns, please contact MTI for details.
Feeding Resolution	0.1 mg
Feeding Accuracy	±2 mg Note: accuracy may vary with particle sizes, powder aggregation,
Sample Holder	Plastic tray with six (6) 30 ml plastic containers
Process	A laptop computer and software are included for automatic operation Program compositions for each sample via laptop Place the sample tray with 6 empty plastic containers X-Y stage moves the individual sample for powder dispensing Once finished per batch, a notification will be sent.
Compliance	CE certified NRTL or CSA certification is available upon request at an extra cost

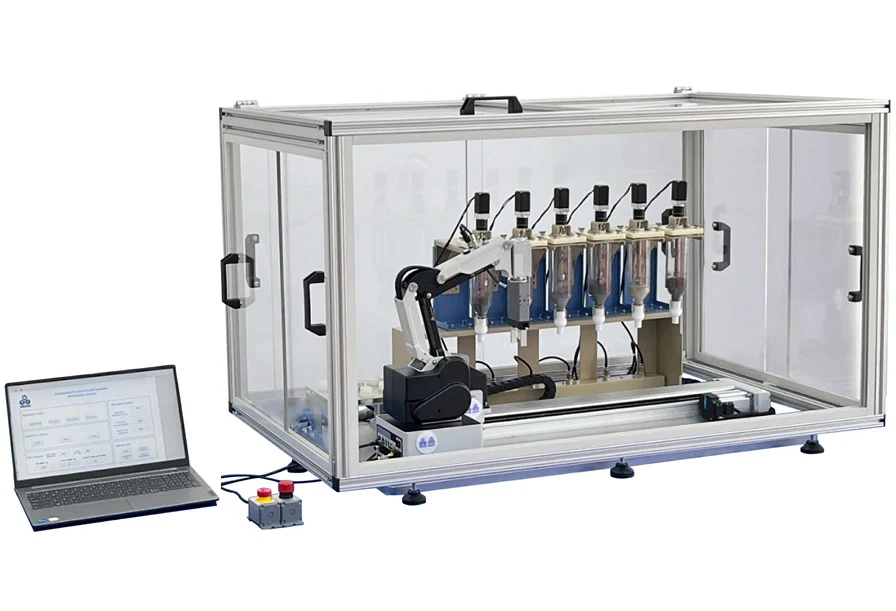

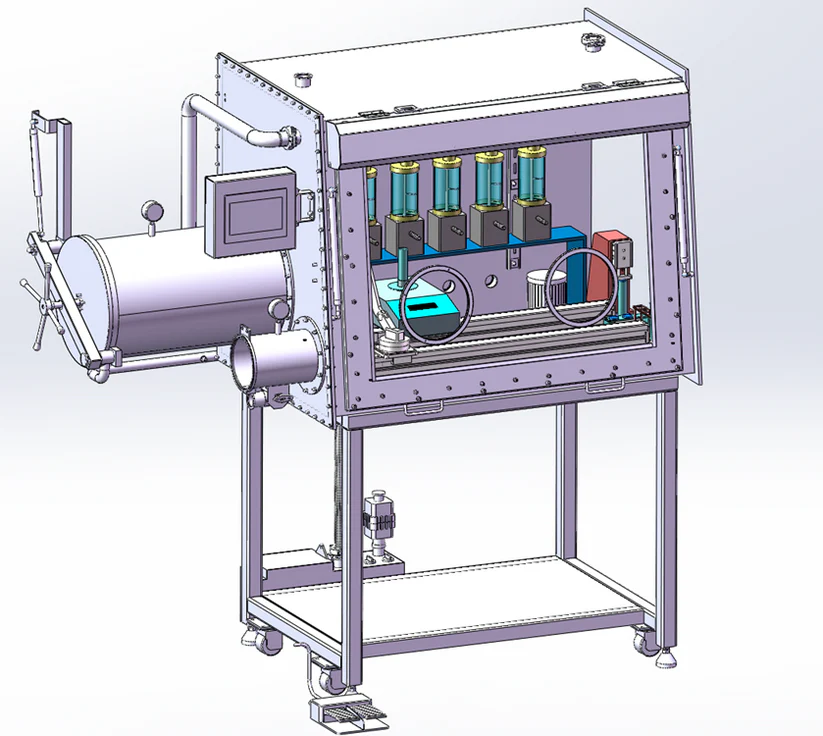

Optional	This automatic dosing system can be put into a protective case or a glovebox for air-sensitive materials This dispensing system can be connected to automatic mixing, pressing, and sintering furnaces to form an autonomous platform for material discovery
