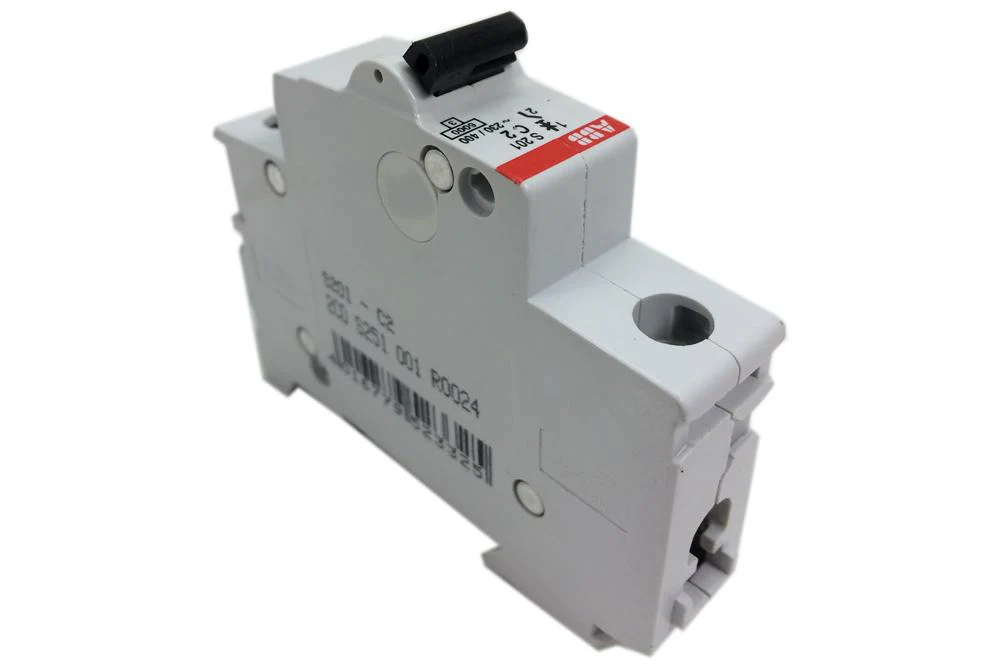

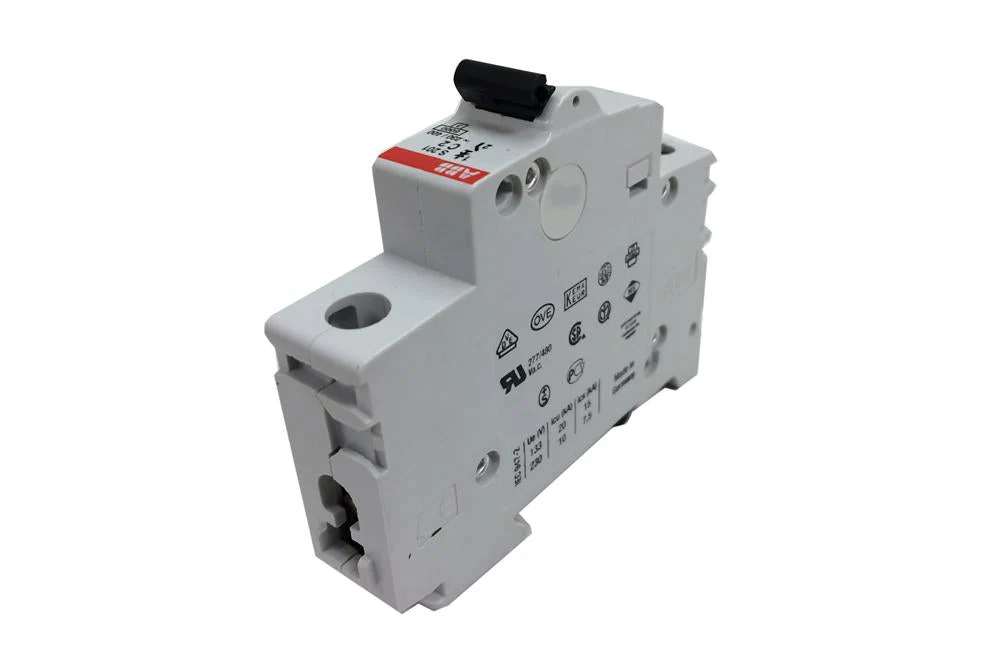

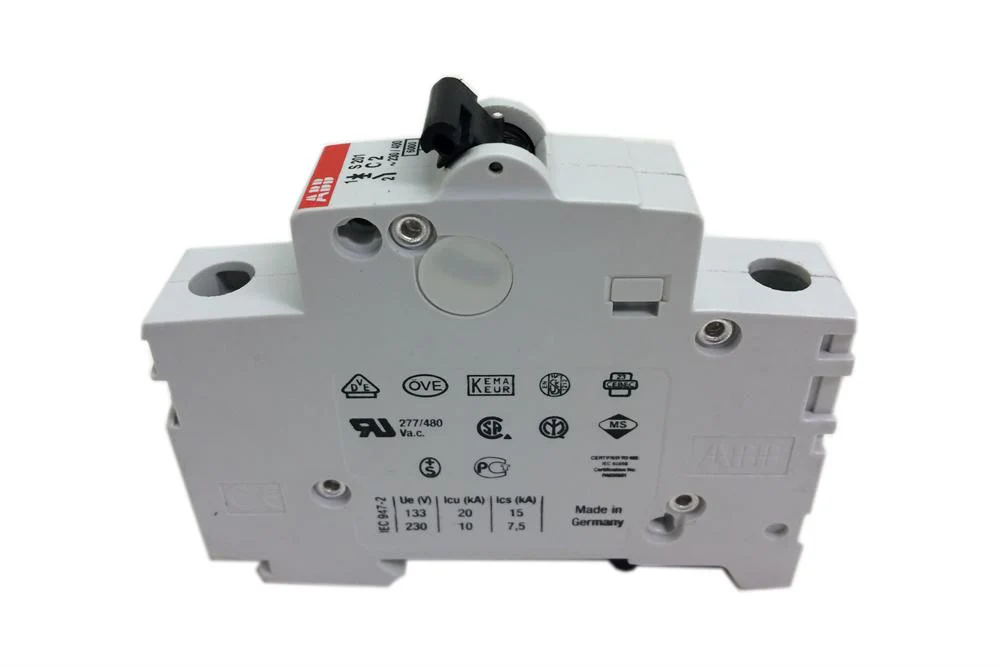

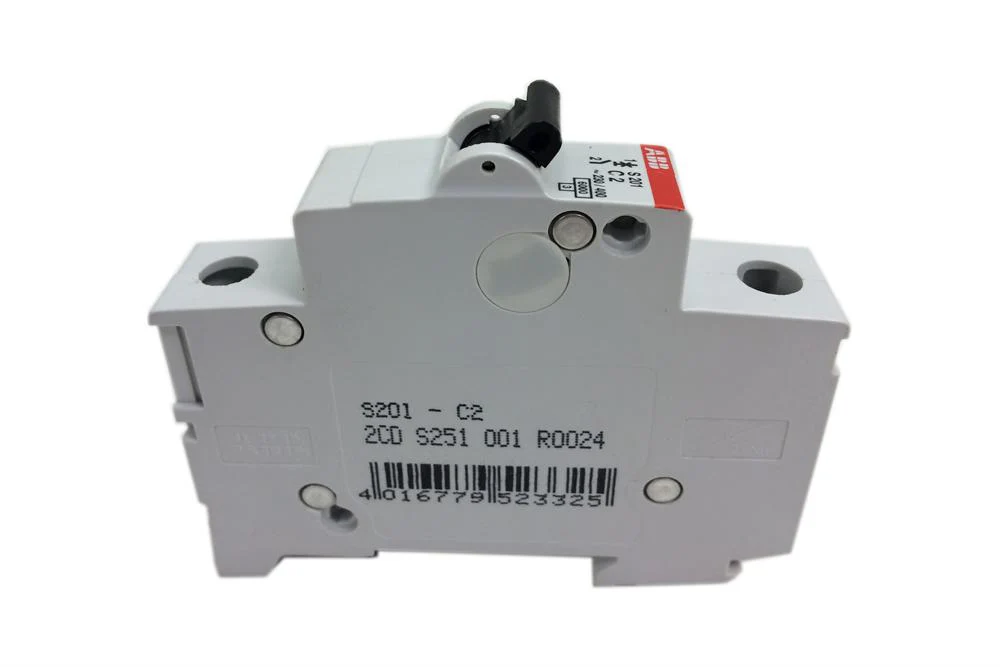

ABB Miniature single pole Circuit Breaker S201 Series - FA-ABB-MCB-S201
ABB Miniature Circuit Breakers S201 Series - MCBs. Tripping characteristic C System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping
mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Specifications:
| Item Number: | S201-C0.5 | S201-C1 | S201-C2 | S201-C4 |
| Brand: | ABB | |||
| Item Category: | Circuit Breaker | |||
| Subcategory: | Miniature | |||
| Series: | S200 | |||
| Poles: | 1 | |||
| Amps: | 0.5 | 1 | 2 | 4 |
| UL Standard: | 1077 | |||
| Trip Curve: | C | |||
| Terminal Type: | Screw | |||
| Voltage: | 220 VAC | |||
| Shunt Trip: | Optional | |||
| Protection: | Supplemental | |||
| Auxillary Switch: | Optional | |||
| Undervoltage Release: | Optional | |||
| Terminals Included: | Line / Load | |||
| Trip Unit: | Fixed Thermal / Fixed Magnetic | |||
| Mounting: | DIN Rail | |||
| Neutral Pole: | No | |||
| IR @ 240 VAC: | 6 | |||
| CSA Standard: | 22.2 | |||
| IEC Standard: | 898, 947 | |||
| GFCI: | No | |||
| 100% Rated: | No | |||
| IR @ 120 VAC: | 10 | |||
| Alarm Switch: | Optional | |||
| Busbar: | Optional | |||
| Approvals: | UL;CSA;IEC | |||
| Picture No.: | circ_mini_s201_s201p | |||
| H x W x D (in.): | 3.35 x .69 x 2.98 | |||
| Net Weight: | 4.4906 oz | 4.6266 oz | 4.8081 oz | 4.9442 oz |
| Gross Weight: | 4.4906 oz | 4.6266 oz | 4.8081 oz | 4.9442 oz |
Original: $35.10
-65%$35.10
$12.29More Images
