40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL

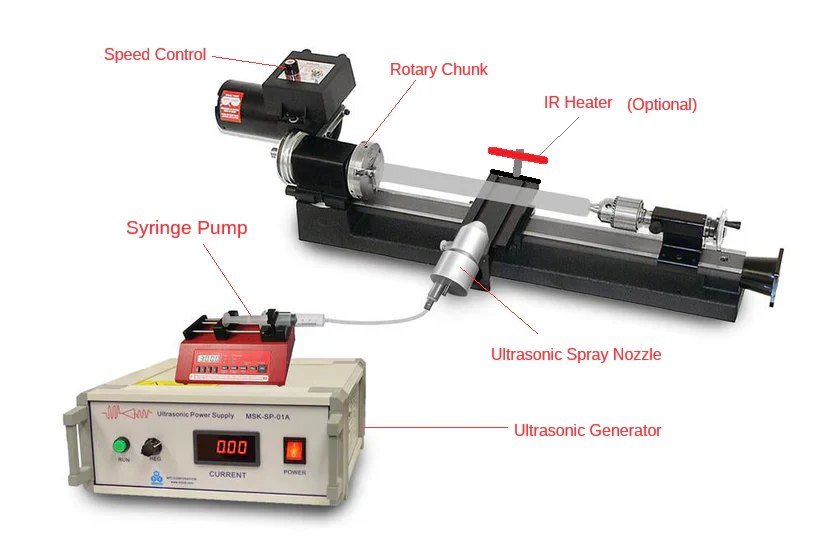

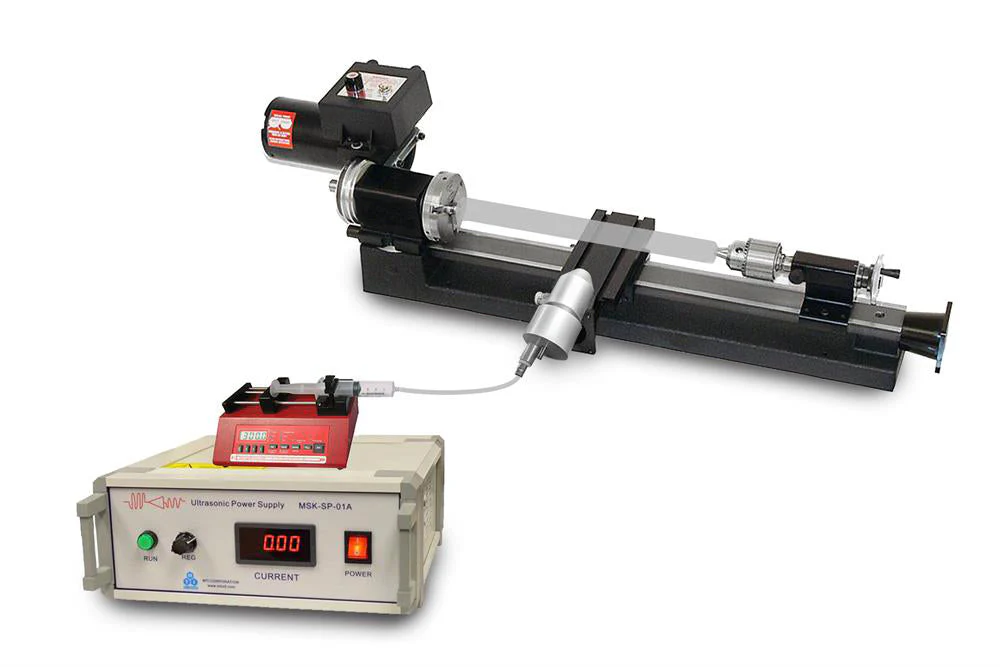

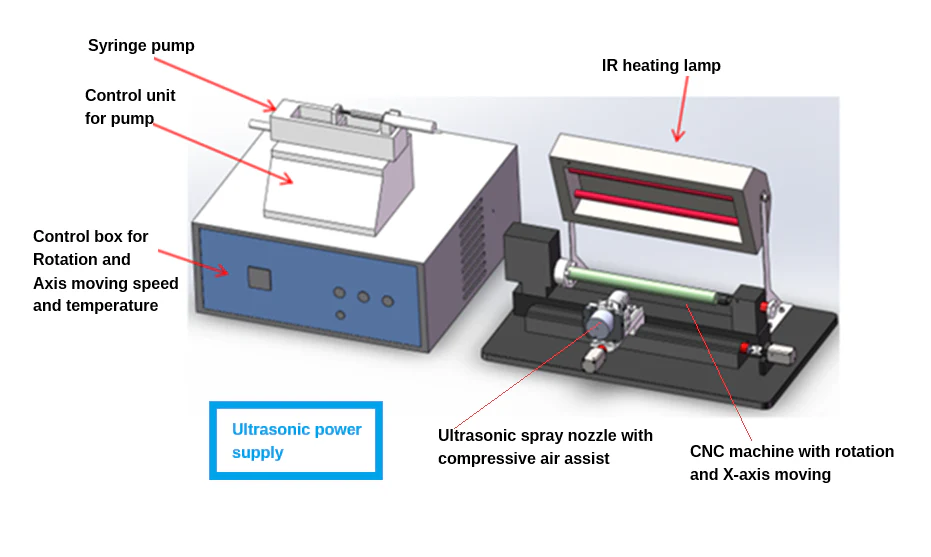

Ultrasonic spray utilizes ultrasonic energy to break liquid and form a few-micron drop size. The ultrasonic spray nozzle can make an atomized liquid to coat the cylindrical surfac. MSK-SP-CYL is a 130 W, 40 kHz ultrasonic spraying nozzle integrated with a rotating frame for spraying on cylindrical samples.

Specifications:

Ultrasonic Generator	Input power: 208 - 240 VAC, 50/60 Hz (A transformer can be used for 110 V) Ultrasonic output: 0 - 130 W adjustable Ultrasonic frequency: 40 kHz

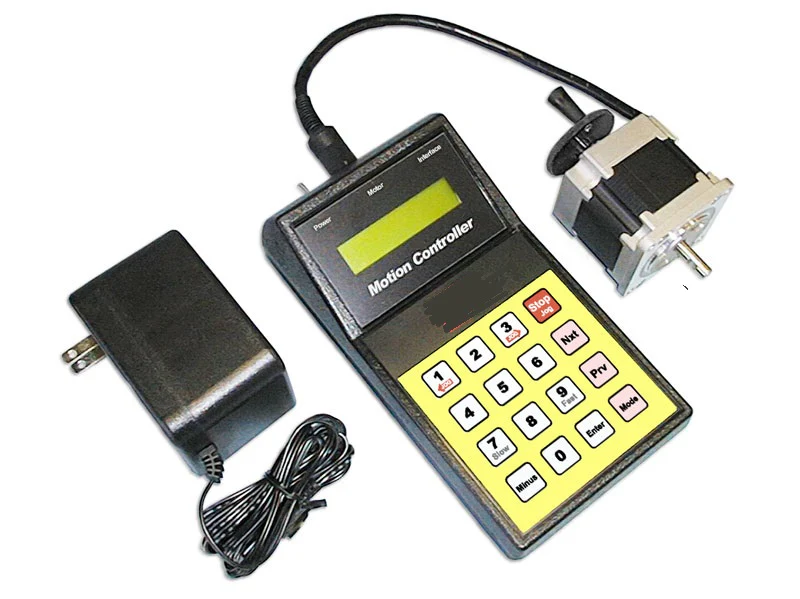

Rotating Frame	17" Lathe Machine with Tailstock for alignment Input Power: 100 - 240 VAC, 50/60 Hz Current Draw: 0.5 - 15 A Max. Sample Length: 430 mm (17") center to center Max. Sample Diameter: 44 mm Max. Rotation Speed: 3000 r/min w/o sample A motion controller with a step motor for the X-axis is included X-axis moving speed: 1-50mm/min adjustable
Ultrasonic Converter	PZT (piezoelectric zirconate titanate crystal) Diameter: 25 mm
Converter Cable Length	2.5 m (8.2 ft)

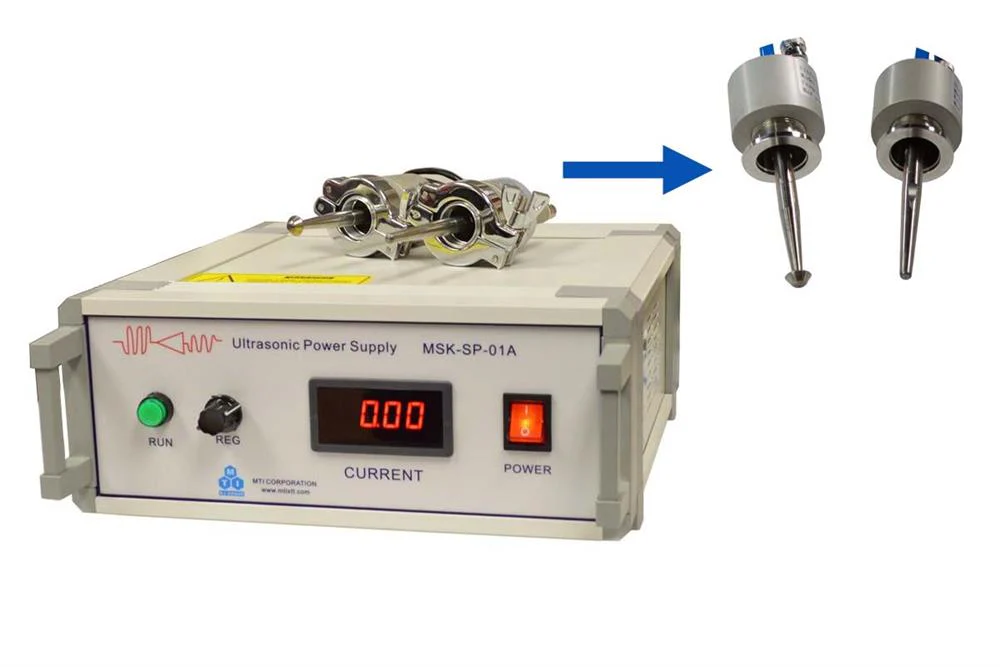

Spray Nozzle	Two Spray nozzles with KF-25 Adapter included. (Click the picture below to see details) One cylindrical type - provides a narrower spray pattern ~2 cm diameter One cone type - provides a wider spray pattern ~4 cm diameter KF25 quick clamp is included to connect the spray head to the KF25 port Max. temperature 70 °C Made of Titanium alloy (Ti-6Al-4V) Spraying speed: 5 mL/min~ 40 mL/min (0.3L/hr - 2.4L / hr.) Fluid viscosity range: 1 - 50 mPa·s (cPs)
Air Vortex Shaper	A compressive air vortex shaper for spray nozzles is included, which will make spraying more uniform. Only suitable for MTI cylindrical-type spray nozzles. An air compressor or an inert gas tank with a regulator will be needed
Average Drop Size	25 µ
Heater ( optional )	One IR lamp heater with temperature controller for pyrolysis is optional up to 200oC +/- 5oC
Compliance	CE certified NRTL certification is available upon request
Operation Demo Video	operation video
Warranty	One year limited warranty with lifetime technical support

$4,899.30

Original: $13,998.00

-65%

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL—

$13,998.00

$4,899.30

More Images

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 2

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 3

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 4

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 5

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 6

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL - Image 7

40KHz 130W Ultrasonic Spray System for 17" Cylindrical Surfaces - MSK-SP-CYL

Ultrasonic spray utilizes ultrasonic energy to break liquid and form a few-micron drop size. The ultrasonic spray nozzle can make an atomized liquid to coat the cylindrical surfac. MSK-SP-CYL is a 130 W, 40 kHz ultrasonic spraying nozzle integrated with a rotating frame for spraying on cylindrical samples.

Specifications:

Ultrasonic Generator	Input power: 208 - 240 VAC, 50/60 Hz (A transformer can be used for 110 V) Ultrasonic output: 0 - 130 W adjustable Ultrasonic frequency: 40 kHz
Rotating Frame	17" Lathe Machine with Tailstock for alignment Input Power: 100 - 240 VAC, 50/60 Hz Current Draw: 0.5 - 15 A Max. Sample Length: 430 mm (17") center to center Max. Sample Diameter: 44 mm Max. Rotation Speed: 3000 r/min w/o sample A motion controller with a step motor for the X-axis is included X-axis moving speed: 1-50mm/min adjustable
Ultrasonic Converter	PZT (piezoelectric zirconate titanate crystal) Diameter: 25 mm
Converter Cable Length	2.5 m (8.2 ft)
Spray Nozzle	Two Spray nozzles with KF-25 Adapter included. (Click the picture below to see details) One cylindrical type - provides a narrower spray pattern ~2 cm diameter One cone type - provides a wider spray pattern ~4 cm diameter KF25 quick clamp is included to connect the spray head to the KF25 port Max. temperature 70 °C Made of Titanium alloy (Ti-6Al-4V) Spraying speed: 5 mL/min~ 40 mL/min (0.3L/hr - 2.4L / hr.) Fluid viscosity range: 1 - 50 mPa·s (cPs)
Air Vortex Shaper	A compressive air vortex shaper for spray nozzles is included, which will make spraying more uniform. Only suitable for MTI cylindrical-type spray nozzles. An air compressor or an inert gas tank with a regulator will be needed
Average Drop Size	25 µ
Heater ( optional )	One IR lamp heater with temperature controller for pyrolysis is optional up to 200oC +/- 5oC
Compliance	CE certified NRTL certification is available upon request
Operation Demo Video	operation video
Warranty	One year limited warranty with lifetime technical support

Product Information

Shipping & Returns

Description

Ultrasonic spray utilizes ultrasonic energy to break liquid and form a few-micron drop size. The ultrasonic spray nozzle can make an atomized liquid to coat the cylindrical surfac. MSK-SP-CYL is a 130 W, 40 kHz ultrasonic spraying nozzle integrated with a rotating frame for spraying on cylindrical samples.

Specifications:

Ultrasonic Generator	Input power: 208 - 240 VAC, 50/60 Hz (A transformer can be used for 110 V) Ultrasonic output: 0 - 130 W adjustable Ultrasonic frequency: 40 kHz
Rotating Frame	17" Lathe Machine with Tailstock for alignment Input Power: 100 - 240 VAC, 50/60 Hz Current Draw: 0.5 - 15 A Max. Sample Length: 430 mm (17") center to center Max. Sample Diameter: 44 mm Max. Rotation Speed: 3000 r/min w/o sample A motion controller with a step motor for the X-axis is included X-axis moving speed: 1-50mm/min adjustable
Ultrasonic Converter	PZT (piezoelectric zirconate titanate crystal) Diameter: 25 mm
Converter Cable Length	2.5 m (8.2 ft)
Spray Nozzle	Two Spray nozzles with KF-25 Adapter included. (Click the picture below to see details) One cylindrical type - provides a narrower spray pattern ~2 cm diameter One cone type - provides a wider spray pattern ~4 cm diameter KF25 quick clamp is included to connect the spray head to the KF25 port Max. temperature 70 °C Made of Titanium alloy (Ti-6Al-4V) Spraying speed: 5 mL/min~ 40 mL/min (0.3L/hr - 2.4L / hr.) Fluid viscosity range: 1 - 50 mPa·s (cPs)
Air Vortex Shaper	A compressive air vortex shaper for spray nozzles is included, which will make spraying more uniform. Only suitable for MTI cylindrical-type spray nozzles. An air compressor or an inert gas tank with a regulator will be needed
Average Drop Size	25 µ
Heater ( optional )	One IR lamp heater with temperature controller for pyrolysis is optional up to 200oC +/- 5oC
Compliance	CE certified NRTL certification is available upon request
Operation Demo Video	operation video
Warranty	One year limited warranty with lifetime technical support
