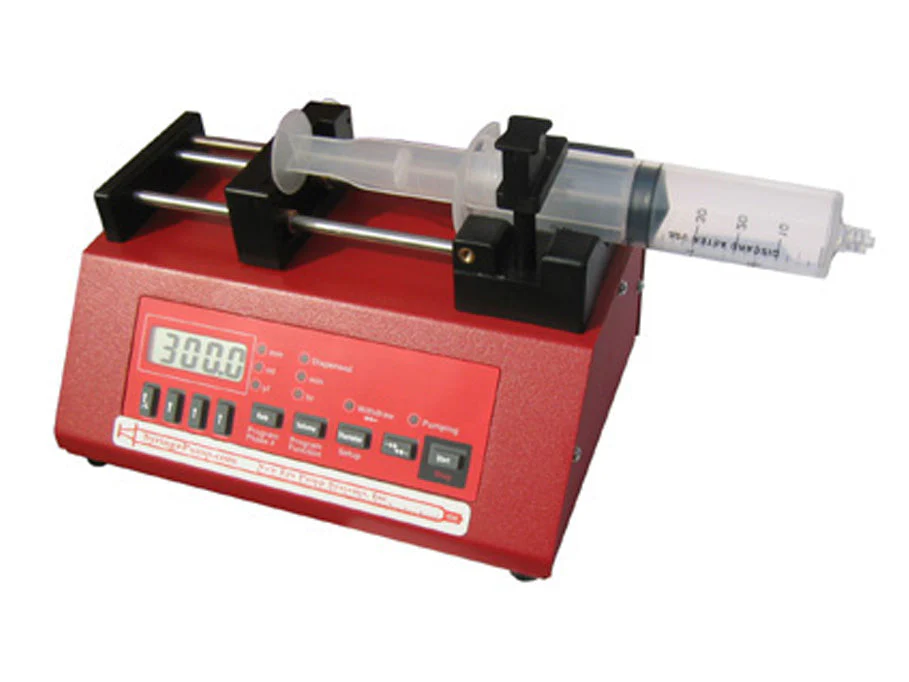

Digital Controlled Infusion Syringe Pump -0 - 25ml/min) - 300SP
HomeStore

Digital Controlled Infusion Syringe Pump -0 - 25ml/min) - 300SP

Digital Controlled Infusion Syringe Pump -0 - 25ml/min) - 300SP

SPECIFICATIONS:

Features
  • Easy-to-use keypad interface
  • Holds small or big syringes up to 60 mL
  • Pumps continuously until you stop the pump
  • The infusion rate can be changed while pumping
  • Remembers previous settings on power-up
  • Power failure mode allows the pump to continue pumping after a reset
  • Syringe purge mode
  • Displays total volume dispensed in mL or ĀµL units
  • The maximum pumping rate of 1500 mL/hr with a 60 mL syringe
  • Precise reproducible flow rates
  • Selectable infusion rate units: mL/hr, ĀµL/hr, mL/min, ĀµL/min
  • Infuses Only Does not withdraw, volume target, or have a computer interface
Input Power Requirement 100 -240VAC, 0.75Amps
Syringe
 A Lab Utility 20ml Syringe is included in the standard package.
Shipping Weight & Dimensions
  • 5 lbs
  • 12"x8"x8"
Applications notes
Ā 		 Pre-metered Horizontal-DippingĀ Process
Such a syringe pump can precisely control the volume of the solution per unit coating area being fed into the gap between the cylindrical barrier and the glass substrate.
Doctor-Blade (or Wire-Bar)Ā Coating
Such a syringe pump can be used to add a solvent at various concentrations. By using multiple syringe pumps, you can add an ingredient in a certain weight ratio to a mixed solution. Similar to the Horizontal-dipping Process, the blended organic solution is introduced into the space between the barrier and the substrate by such pumps' capillary action. The Doctor-Blade is transported horizontally at a given constant velocity, a thin solution layer is then spread and formed evenly on the substrate.
Dip Coating
Wet solution coating such as dip coating has been the most popular method for solution-processed devices.
DIY an Ultrasonic Spray and Electrospinning device
Operation instructions

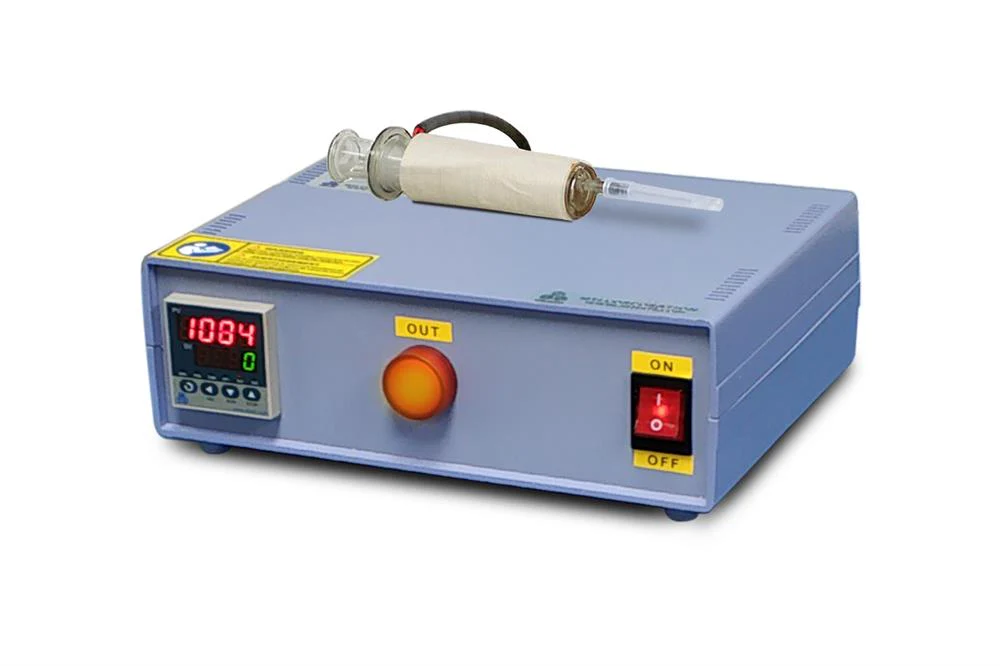

Options Click the Picture below to order Heat-able or multi-channel Syringe Pump

Ā

$495.00
