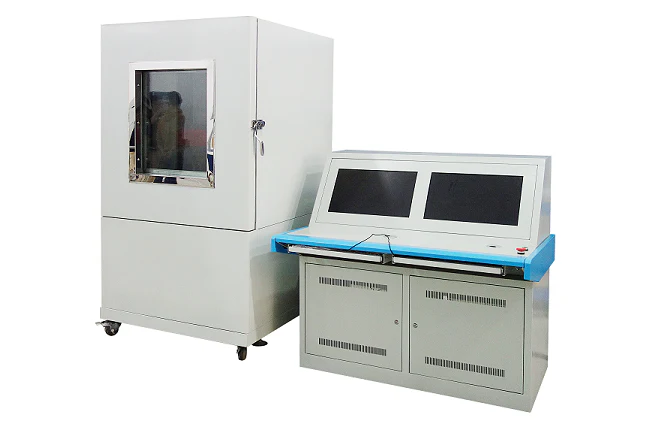

20T Max. Horizontal Servo-Motor Driven Crushing & Nail Penetration Tester with Digital Control - MSK-TE935
HomeStore

20T Max. Horizontal Servo-Motor Driven Crushing & Nail Penetration Tester with Digital Control - MSK-TE935

20T Max. Horizontal Servo-Motor Driven Crushing & Nail Penetration Tester with Digital Control - MSK-TE935

MSK-TE935 is 20T max. the testing machine driven by servo-motor for both Crushing and nail penetration with touch screen programmable Panel and PC remote control for safe operation. The electric hydraulic pump provides crushing force for battery cells at variable speed up to 200KN, and also can cut-off based on pressure, battery temperature, and voltage drops off to meet IEC 62133.8.3.5, UN38.3 and GB/T31485-2015 standard.

SPECIFICATIONS

Power Requirements
  • 208- 240VAC, 3 phases, 50/60Hz
  • 10KW
  • 380VAC version is available upon request
 Crushing Unit
  • Force 1000N~200KN with Accuracy: ±1%
  • Pressing Head: R75 mm included (customized head is available upon request)
  • Crushing speed: 1- 40 mm/s adjustable via hydraulic pump's valve
  • Programmable Battery Height Range: 0- 400 mm
  • 4 channels Voltage measurements: 2 channel 0 - 10V & 2 channel 0 - 100V
  • 4 channel temperature measurements: 01300, accuracy: ±0.1
Nail Penetration Unit
  • Driven by Servo-motor
  • Penetration Force: adjustable
  • Penetration speed: 1~40 mm/s adjustable (High speed up to 130 mm/s is available upon request)
  • Dwell time: 0~9999s adjustable
  • Four nails included: φ5mmφ6mmφ7mmφ8mm made by high-temperature steel
Chamber Structure
  • Double-layer steel chamber for anti-explosion
    • Inside chamber: made of 1.5 mm thickness cold rolled SS304 with tensile strength > 500 Mpa
    • Outside casing: made of 1.5 mm thickness annealed A3 steel with Tensile strength > 400 Mpa
  • Explosion-proof window: 280X 280mm
    • Double layer 5 mm thick anti-explosion glass with double sides anti-explosion film to ensure broken glass can not flying out in the case of explosion
  • Laser crosshair for visualizing crushing / penetrating center
  • Battery Placement Area: L 600mm x W 600mm x H 400mm
  • Lighting is built on top
  • Four-wheel is installed on the bottom to make the box movable

Fire extinguishing apparatus (optional)
  • Two fire detectors are installed inside the chamber, which will relay on to open optional Fire extinguishing apparatus once fire happen upon request of the customer
  • Customers may use the detector drive water valve opening or drive Fire extinguisher open according to battery type
  • We may add other Fire extinguishing apparatus upon request of the customer
Control Unit
  • Separated control unit from the operation chamber
  • Touch screen panel for parameter and program setting
  • Optional: Remote operation by PC via WiFi network is available upon request at an extra cost

Compliance
  • CE certified
  • NRTL certification is available upon request.
Safety Note
  • The Machine must be put in the isolated fire-proof room or fume-hood with venting and extinguishing system
  • Please use remote for operation in our site room







$34,986.00

Original: $99,960.00

-65%
20T Max. Horizontal Servo-Motor Driven Crushing & Nail Penetration Tester with Digital Control - MSK-TE935—

$99,960.00

$34,986.00
