15KW Induction Heating System with 5" Quartz Tube & Temp.-Controller up to 2200°C - SP-50KTC

SP-50KTC is a temperature-controlled induction heating/melting system with complete accessories. It is an ideal tool for melting and sintering new metallic alloys with max. 2200ºC and can be modified into a PVT ( Physical Vapor Transportation ) system or melt infiltration system

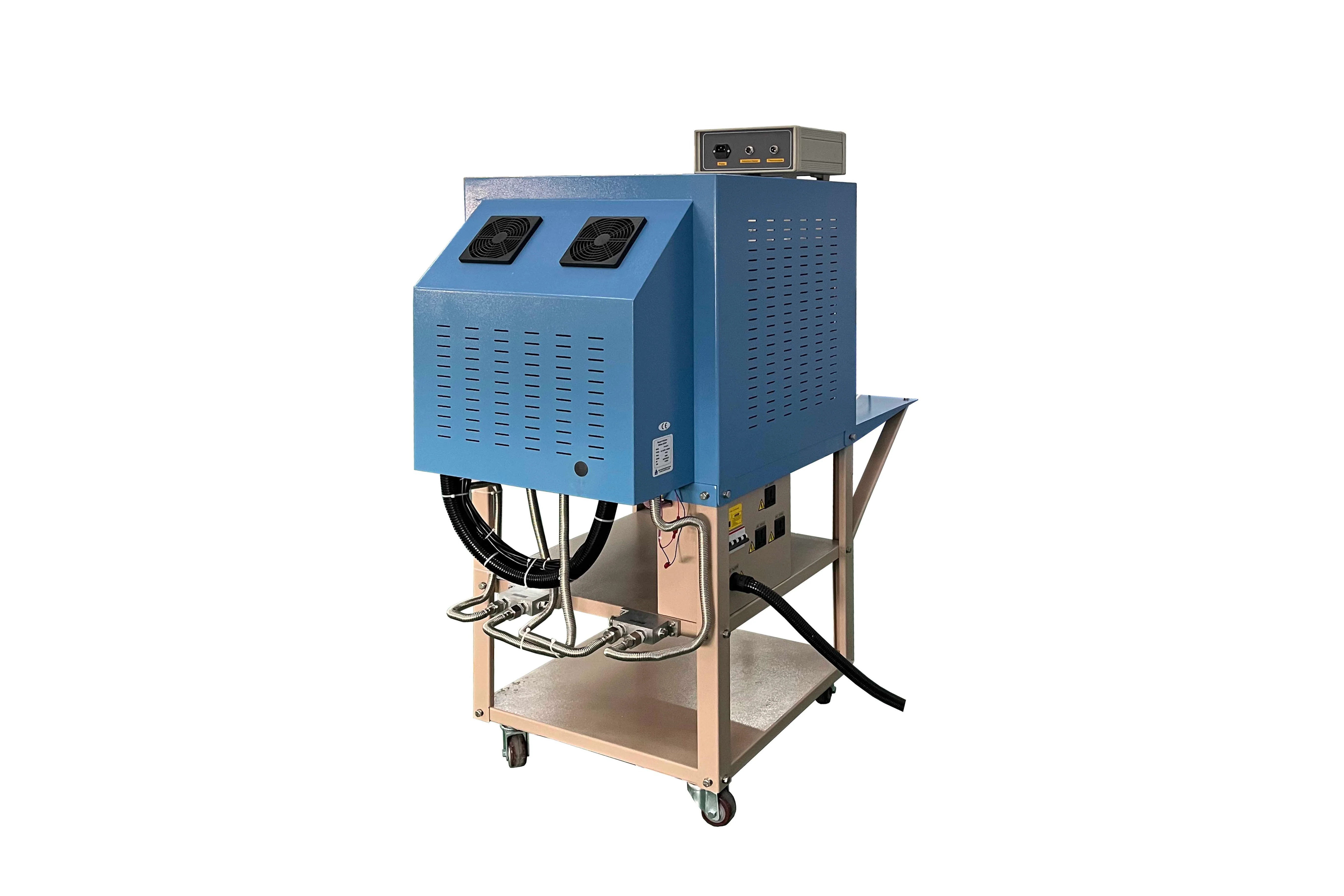

The system includes an induction heater, 130mm O.D quartz tube with flanges & valves, graphite crucible & refractory assembly, 58L/m recirculating water chiller, 156L/min vacuum pump, and a mobile cart.  Upgrade to 2200oC since Mar. 22, 2021)

SPECIFICATIONS:

Induction Heater	Working Voltage: 220V AC, 50/ 60Hz, Three Phase Max.Input Power: 15 KW Working Current: 5~52 Amps (a 60A breaker is required) Input Power Cable: min. 4AWG cable (the cable is not provided with the machine) Output Frequency: 30 - 80 kHz  Duty Cycle: 100% Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H)  Air Cooling: rear fan Protection: automatic water pressure, over-temperature, and overpower protection Refractory assembling: complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover
Temp. Controller & Thermocouple	Precision digital temperature controller with automatic PID tuning. 30 segments programmable for controlling heating and cooling rate as well as dwell time. Overheating & thermocouple failure protection. +/- 3 ºC temperature accuracy.  Thermocouple: C type  ( 1/4"x10" L )   ( please click here to order a spare as consumable) Continuous Working Temp. Range: 1000ºC~1900ºC Max Working Temperature: 2200ºC (for less than 30 minutes ) and 2000oC for 2 hrs) Max. Heating Rate:  10ºC/second (1000ºC-1200ºC) 8ºC/second (1200ºC~1500ºC) 3ºC~6ºC/second (1500ºC~1700ºC)
Graphite Crucible & Refractory liners	High Purity Graphite Crucible: 2" OD x 1.57"ID x 4" Depth (4.3'' Height) is included.  Max. Loading Capacity: Half of the total volume of the graphite crucible. Note: Graphite crucible is consumable, please click picture below-right to order spare Optional: Special designed graphite "Box" for accommodating single piece wafer substrate up to 1.5'' O.D x 1/8'' Thick is available upon request. It is an ideal wafer holder which can be inductively heated up and provide uniform heat treatment to the wafer inside. The crucible for melt infiltration is available upon request                Three-layer special design refractory liner can withstand temperatures up to 2200C.
Sealing Flanges & Quartz Chamber	130mm(OD) x 122mm(ID) x 360mm(L) Quartz tube is included, click pic.1 to order spare . Top Flange:  Hinged type flange w/ 1/4'' T/C feedthrough, needle valve, and barbed fitting. (Pic.2) Bottom Flange: Stainless steel flange with a needle valve and KF-25 vacuum port. (Pic.3) KF25 angle valve & clamps and 1m SS bellows are included for connecting to the vacuum pump.(Pic.4)   Pic.1         Pic.2    Pic.3          Pic. 4
Pressure Sensor	Anti-corrosive capacitance diaphragm gauge, measurement range up to 3.8x10E-5 torr One 24V, 1A DC power adapter is included and ready to use.
Flow Meter	Compact Direct Read Flow Meter, 100-1000 cc/min. with 1/4NPT Accuracy: 4%
Pressure Relief Valve	This valve is designed to release pressure at 0.02 MPa for safety concerns
Water Chiller (Optional)	Temperature range: 5 - 30°C Water Flow Rate: 58 L/min Water Tank: 15 Liters made of stainless steel Note: It is recommended to use a specific coolant to get the best performance. It is normal to wait a couple of minutes for cooling down after several trials of heating Note: the input voltage for the water chiller is 220V
Vacuum Pump	One 156 L/min Double-Stage Rotary Vane Vacuum Pump Rate: 156 L/min up to 1E-2 torr vacuum Max. Power Consumption: 400W For US customers, a 110V Vacuum pump will be included If you choose a high-speed turbo-pump, the vacuum level can reach 10e-5 torr

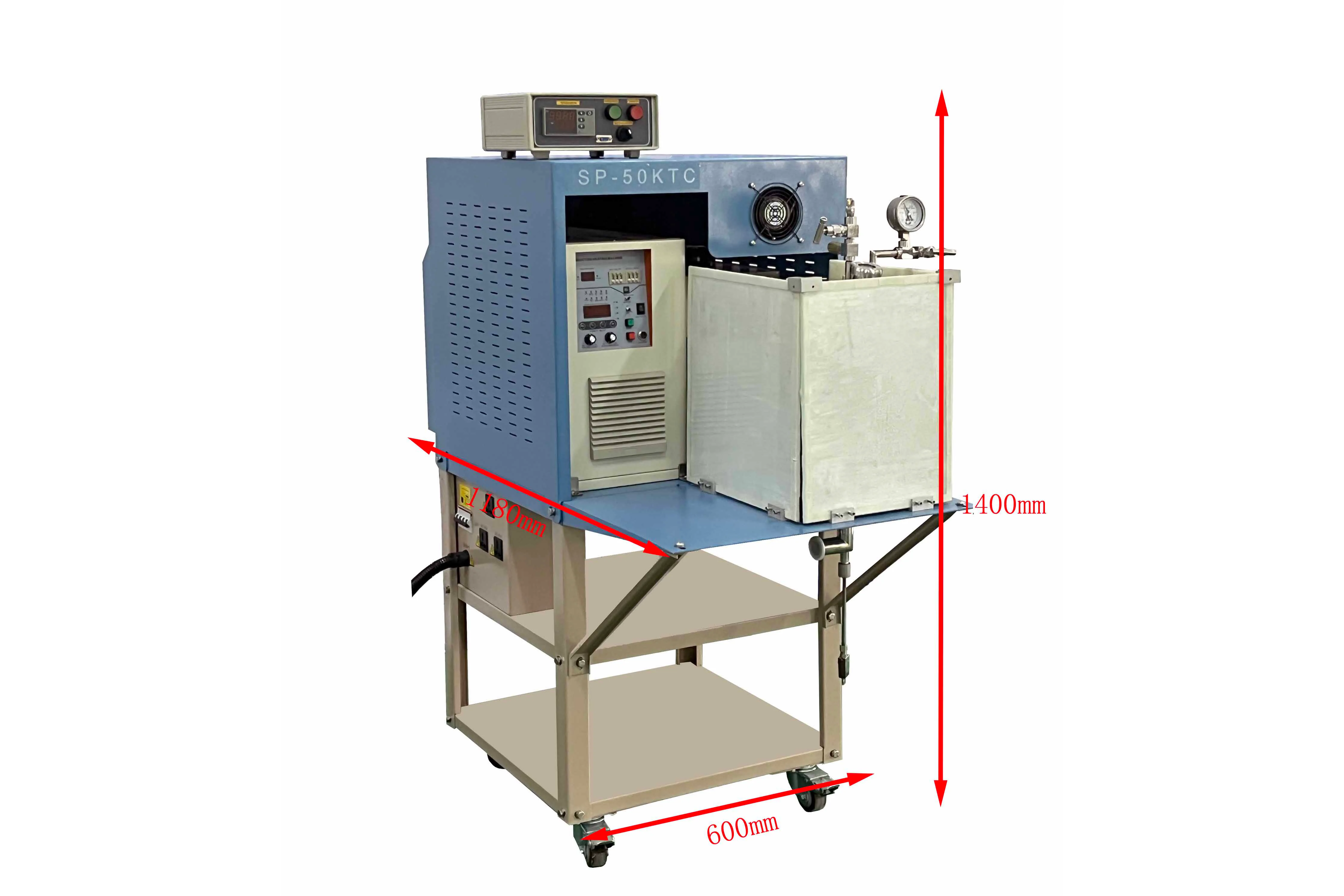

Heavy Duty Mobile Cart	Structure: Steel Frame Mobile Cart 600mm(L) x 800mm(W) surface for placing Induction Heater & Quartz Tube with Flange
Protective Shield	For Non-UL Certified version, a protective shield made of phenolic sheets will be provided. For UL Certified version, a clear protective shield made of polycarbonate will be provided. The protective shield is to be placed around the quartz tube to contain the shooting glass shards if accidents were to happen.
Compliance	NRTL certification is available upon request at extra cost, please contact us for a price quote. Certify standards include: 1) Induction heater: UL61010-1 & UL499 Vacuum Pump: UL1450 Water Chiller: UL61010 & UL1995
Warning Click here to learn more about the installation of a gas regulator.	Attention: Protective inert gas must be continuously filled throughout during heating in order to protect the graphite crucible and C thermocouple.  The C-type thermocouple is consumable which is not covered under our limited warranty. The Induction Melting System is designed to operate in low-pressure conditions (< 0.02 Mpa Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSIG for safe operation. Click here to learn the installation of a gas regulator. Never heat the furnace while the gas release valve is closed. The pressure gauge must be used during the healing process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSIG to prevent unforeseeable damages.
Application Notes	Please click here to learn how to set up a crucible for melting. Melting time and temperature are related to materials, the crucible, refractory insulation, etc.  PVT (Physical Vapor Transportation) system for growth bulk SiC crystal by changing a suitable crucible, see pic to the left.
