1200C Max Two-Zone PECVD Tube Furnace (50 mm OD) with Pre-Heater and Auto-Sliding - OTF-1200X-II-50-PEMSL
HomeStore

1200C Max Two-Zone PECVD Tube Furnace (50 mm OD) with Pre-Heater and Auto-Sliding - OTF-1200X-II-50-PEMSL

1200C Max Two-Zone PECVD Tube Furnace (50 mm OD) with Pre-Heater and Auto-Sliding - OTF-1200X-II-50-PEMSL

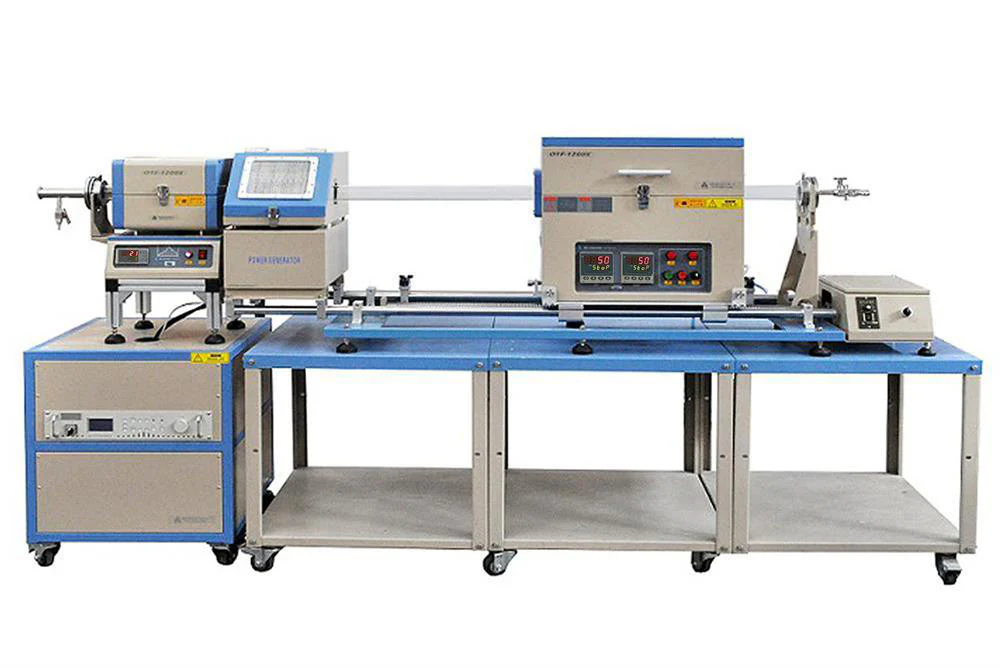

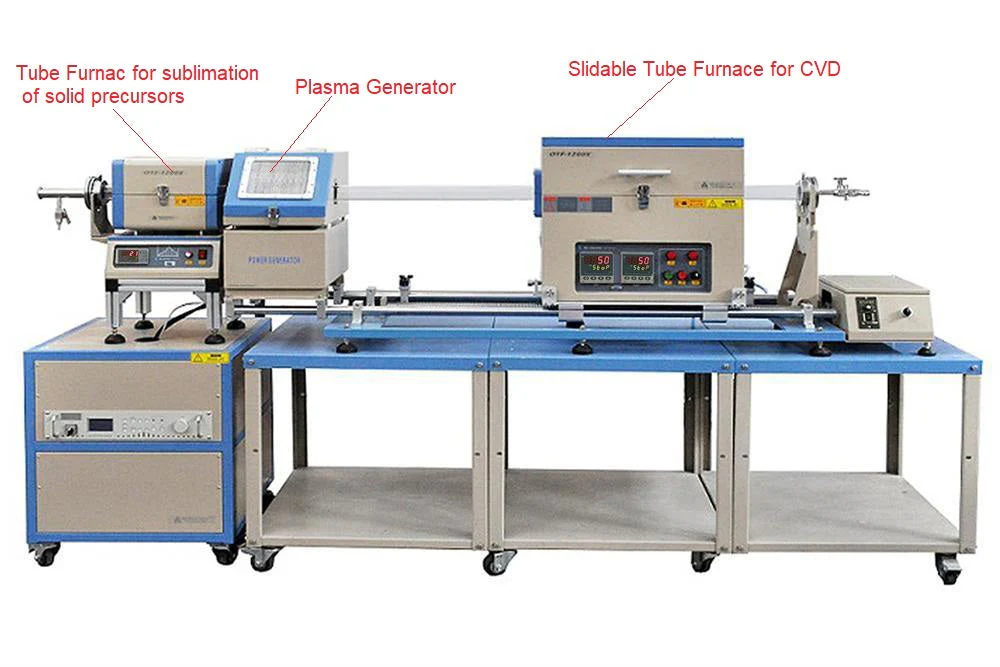

OTF-1200X-II-50-PEMSL is a dual-zone PE-CVD tube furnace system which consists of 300W RF plasma source, speed controlled slidable mechanism, a pre-heater for sublimating the solid material and a high-quality oil-less vacuum pump. Such a PE-CVD furnace is a new tool to grow nanowire and for CVD coating of a wide range of material with the following benefits:
  • Lower temperature processing is required compared to the conventional CVD
  • High heating & cooling rate using a sliding furnace
  • Dual heating zone to create a thermal gradient up to 500ºC
  • 1100ºC Max. the working temperature in the tube furnace
  • 1100ºC Max. the working temperature in pre-heater for heating vapor phase or evaporating solid materials
  • Rapid cooling & Heating for growing 2D materials
SPECIFICATIONS:
Dual Zone Split Tube furnace
  • Max 1100ºC for continuous heating
  • Two programmable precision digital temperature controllers with 30 segments.
  • Two separate controlled Heating Zones
    • 200mm length for each heating zone
    • 400mm total in heating length
    • 250mm constant central temperature heating area if both zones were heated at the same temperature
    • 500ºC max temperature difference between two zones with thermal blocks in between
  • Input power: 208 – 240V AC input, a single phase at max. 4KW

Plasma RF Power Supply
  • Output Power: 5 -300W adjustable with ± 1% stability.
  • RF frequency: 13.56 MHz ±0.005% stability.
  • Reflection Power: 200W max.
  • Matching: Automatic
  • RF Output Port: 50 Ω, N-type, female
  • Noise: <50 dB.
  • Cooling: Air cooling.
  • Power: 208-240VAC, Single Phase, 50/60Hz
Pre-heating furnace
  • Small tube furnace with 200mm length single heating zone
  • Max. temperature: 1100ºC
  • 30 segment programmable temperature control
  • The vapor goes through the heater first before getting in the RF Plasma generator.
  • It can put solid material in the heater for evaporation and mixing with the vapor phase.
  • Quartz Tube: 50mm OD x 44mm ID x 2200 mm L ( 80mm OD tube is available at extra cost
  • Vacuum flange: included
  • Quartz Tubes
Anti-corrosive Pressure Gauge
  • 3.8x10-5 to 1125 Torr measurement range
  • Anti-corrosive, gas-type independent
  • High accuracy and reproducibility at the atmosphere for reliable atmospheric pressure detection
  • Fast atmospheric detection eliminates waiting time and shortens the process cycle
  • Easy to exchange plug & play sensor element
  • Click the picture to view detailed spec.
Vacuum Pump Station and Valves

  • 240L/m Heavy Duty Dual-Stage mechanical pump is installed inside the heavy-duty mobile cart
  • KF25 adapter and stainless steel pipe are connected between the pump and tube flange with a precision ball valve for the customer's plug-and-play
  • 10E-2 Torr vacuum can be achieved inside the processing tube

Sliding mechanism
  • Sliding rail and screws are built into the bottom furnace, which can move from one side to another as a program to achieve faster heating or cooling.
  • Sliding speed is adjustable from 0-70 mm/s

Heating & Cooling Rates
  • RS485 port and software are installed and allow remote control temperature profile by PC (not included, customer can order one from here)
  • To achieve Max. heating rate, the user must preheat the furnace to the desired temperature, then slide the furnace to the sample zone of the tube
  • To achieve the Max. cooling rate, push the heated furnace from the hot zone to the cold zone
Heating Rate:
15°C/sec (RT - 150°C);
10°C/sec (150°C - 250°C);
7°C/sec (250°C - 350°C);
4°C/sec (350°C - 500°C);
3°C/sec (350°C - 550°C);
2°C/sec (550°C - 650°C);
1°C/sec (650°C - 800°C);
0.5°C/sec (800°C - 1000°C);
Cooling Rate:
15°C/sec (1000 - 950°C);
10°C/sec (950°C - 900°C);
7°C/sec (900°C - 850°C);
4°C/sec (850°C - 750°C);
2°C/sec (750°C - 600°C);
1.5°C/sec (600°C - 500°C);
1°C/sec (500°C - 400°C);
0.5°C/sec (400°C - 300°C);
Flanges
  • A pair of water-cooled flanges
  • 1/4" compression tube fitting as gas inlet and gas outlet
  • KF40 port for vacuum pumping

Water Chiller

(Optional)
  • KJ5000 water chiller is recommended




Optional
  • Two to four precision mass flow meters (0.02% accuracy) with digital displays are available as options, which can replace the bottom case to control the gas flow rate automatically with the system. Please click the picture below to choose one for your budget.
  • Click the picture below - left to order a bubbler or evaporator for CVD, and below right for the Constant temperature control module

Overall Dimensions
  • Furnace: 550 x 380 x 520 mm
  • Sliding Rail: dual rail with 1750 mm length
  • Two Adjoined Bottom Mobile Cases: 1200 x 1200 x 1200mm.
  • Net weight: 220 Lbs.
  • Shipping Weight: 1200lbs.
Warranty
One-year limited warranty with lifetime support (Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty, please order replacements at related products below).
Laptop & software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
  • Labview-Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
