10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10
HomeStore

10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10

10 Channels Automatic Battery Sorter/ Battery Selector for 18650 or 21700 Cell - MSK-BS-10

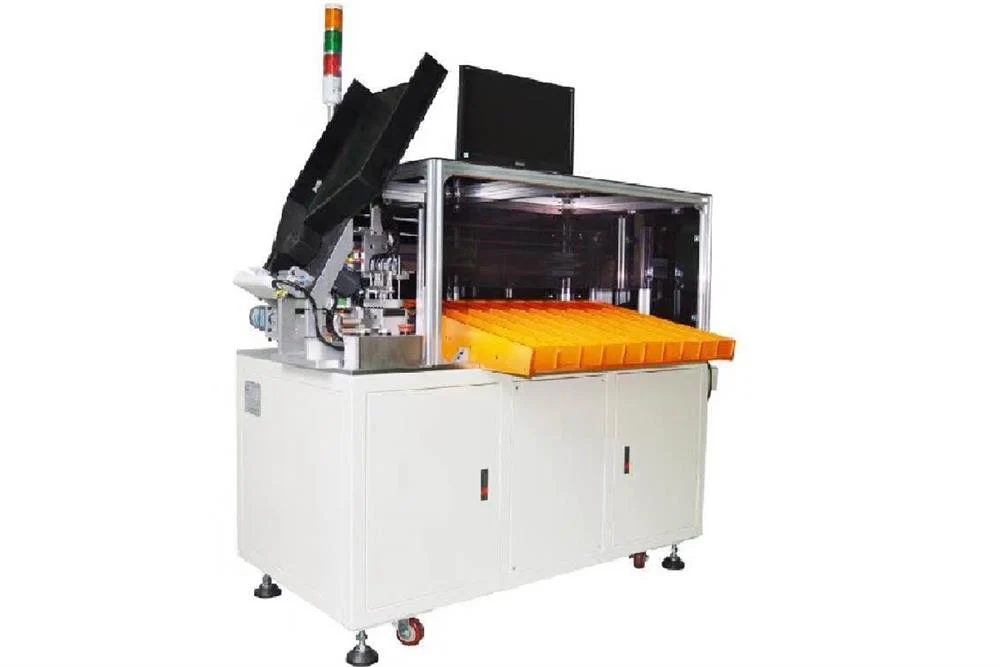

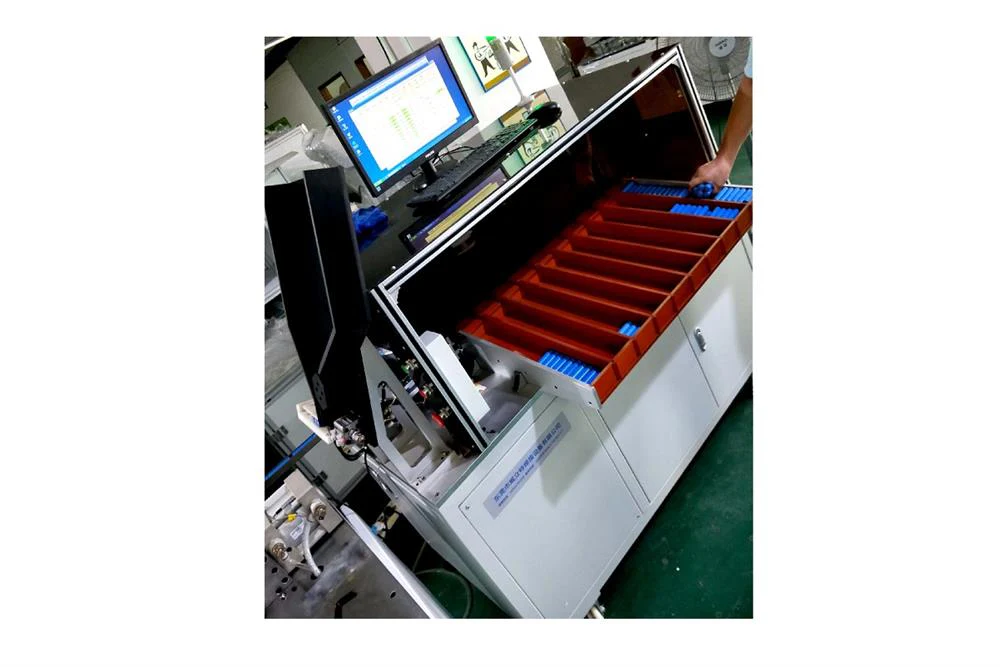

MSK-BS-10 is a 10-channel automatic Battery Sorter/Selector for sorting cylindrical 18650 battery cells by voltage and impedance up to 10 groups.

SPECIFICATIONS:
Feature
  • A must have equipment for Battery Pack Manufacturer!
  • 10 Channesl automatic cell sorter is designed to sort cylindrical 18650 cells
  • Sort by cell's voltage and impedance up to 10 groups
  • Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
  • Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale)
  • Automatic sorting control
  • Fast sorting speed (5000 batteries/hr)
  • Easy to refill cells during the process
  • Long post-test cell trail
  • 4 wheels design, easy to move the machine to any operating place.
Input Power
  • Voltage: 220 VAC (50Hz/60Hz)
  • Power: 800W
LCD Control Panel Screen
  • 5.7"
Operation Temperature & Humidity
  • Temperature: 0-50
  • Humidity: < 75%
Air Pressure Range
  • 0.1 - 0.8 Mpa ( air compressor is required, please order at the related product below )
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
           pic1                pic2
Efficiency
  • Maximum: 80 PPM
Compliance
  • MET, UL or TUV certificate is available at extra cost
Weight
  • 200 Kg (440 lbs)
Dimension
  • 1320 mm (L) x 860 mm (W) x 1200 mm (H)
Warning
  • Avoid putting objects other than 18650 batteries in pretest battery space
  • Be careful not to pinch fingers in operating conveyor
  • Do not open the machine when it is operating
  • Remove bracelets or any other jewelries before operation
  • Always check the quantity of the batteries before and after the test in order to prevent blocking the conveyor inside the machine.
Warranty
  • One-year limited warranty with lifetime support
Operation Manual

$13,999.30
